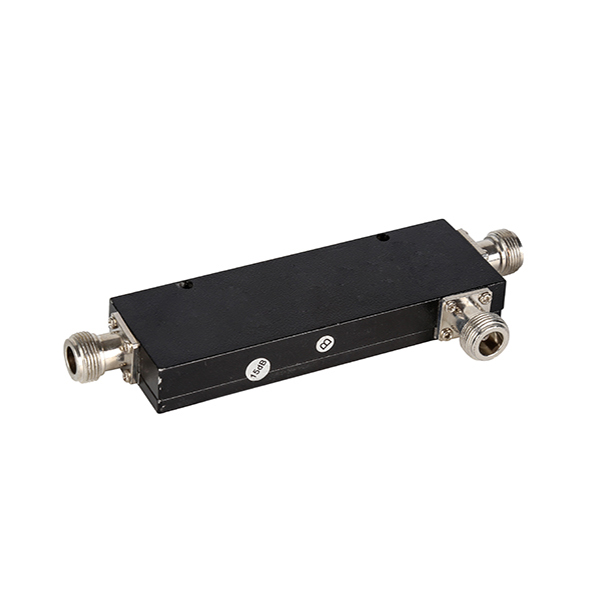

Model Name

CP0740-5N

CP0740-7N

CP0740-10N

CP0740-15N

CP0740-20N

CP0740-25N

Coupling Value (dB)

5

7

10

15

20

25

CouplingTolerance (dB)

±0.8

±0.8

±0.8

±1.0

±1.0

±1.0

Insertion Loss?(dB)

< 2.15

< 1.76

< 1.47

< 0.96

< 0.52

< 0.35

Isolation(dB)

> 23

> 23

> 25

> 25

> 28

> 28

Frequency Range (MHz)

698-4000

Return Loss (dB)

≥19

PIM3 (@2x43 dBm Carrier) (dBc)

-120

Input Power(W)

< 200

Impedance (Ω)

50

Dimensions (mm)?

165.6x60x30 (excluding connectors and mounting bracke)?

Weight (kg)

0.6 (including connectors and mounting bracket)

Connector Type

N-Female

Color

Black

Mounting

Wall Mounted

Operational Temperature (°C)

-25 to +65

Operational Humidity (%)

≤95

Ingress ProtectionClass

IP65(Indoor and Outdoor)
